Automatic control system for gas-distribution station
ACS GDS is intended for the control and automation of one- or two-thread gas-distribution stations of different
capacities.
MAIN TASKS TO BE SOLVED
Execution of automatic control programs in emergency situations.
Tap control
Ability to query gas flow rate calculators via interface, calculation of summary gas flow rate and control of gas odor system.
Data acquisition, processing and archiving.
Automatic transmission of emergency and warning signals to the workstation operator and the recording of each emergency event.
Change of warning and emergency setups from the built-in and remote operator workstation.
Control of exhaust ventilation, emergency light and acoustic signaling.
Good condition monitoring of all operating mechanisms of technological equipment, continuously runs self-diagnostics on all system modules and supply units.
Displays information about process flows and the state of equipment graphically via the remote operator workstation.
Integration with the protection signaling system.
Integration with the fire signaling system.
Interaction with remote control & monitoring system supporting the command transmission via communication
line from the operator to control objects, and remote control devices in operator house.
Data transmission to information-control systems via interface lines, telephone lines or radio channel.
Provides uninterrupted electricity supply support of ACS GPA and automation devices in the event of voltage
loss from an uninterrupted supply assembly with the use of a back up battery (from 2 to 8 hours).
SPECIFICATIONS
24 analog input signals ТСМ (RTD Copper ), ТСП (RTD Platinum) thermal resistance transducers with calibrations under State Standart 6651; (0-5), (0-20), (4-20) mA direct current; direct voltage from ±15 mV to 550 V; alternating voltage from 200 mV to 600 V; frequency signals from (0-500) Hz to (0-100) kHz; including signals from ТСМ (RTD Copper), ТСП (RTD Platinum ) and pressure sensors with spark-proof input circuits
of level “ia”.
104 discrete low-voltage (24 V) input signals, including 24 differential and 5 groups with one common (of 16 signals “dry contact”).
Up to 16 low-frequency number-pulse (count) inputs with pulserecurrence frequency up to 100 Hz.
32 output discrete signals (transistor with open collector = 30 V, 100 mA;
electromechanical relays with commutating contact (~220 V or = 30 V, 6 A) or optorelays (~220 V, 2 A or = 24 V, 2 A).
Up to 4 analog output signals (0-20), (4-20) mA or (0-10), (0-5) V.
Cycle of inquiry and control under discrete signals – 100 ms (under analog signals – 1 s).
INSTALLED EQUIPMENT SPECIFICATIONS

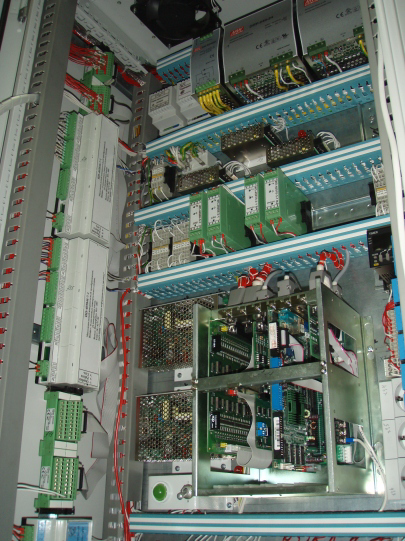

ACS GDS cabinet with built-in panel operator workstation: 2200 x 600 x 400 mm (H x W x D).
Remote operator workstation: industrial desktop computer: system unit, keyboard, mouse, acoustic columns – at client's request.
ABP1300-ОО-24/220 (ABP - Uninterruptible power supply) uninterrupted supply assembly - 440 x 530 x 500 mm (H x W x D) – at client's request.
2 pieces of AKB DJM 12200 (12 V, 200 A*h) – 224 x 522 x 240 mm (H x W x D) – at client's request. (АКБ- storage battery)
ABP & AKB case-support – 300 x 540 x 500 mm (H x W x D) – at client's request.
